UNIDENTIFIED
AT PLUS (SIMM VERSION)
|
Card Type |
Memory card |
|
Chipset/Controller |
N/A |
|
I/O Options |
N/A |
|
Maximum DRAM |
8MB |
|

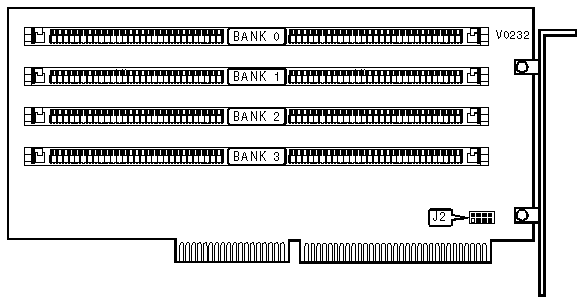

AT BOARD SELECTION | ||
|
Number of AT PLUS Boards installed |
J2 | |
| » |
1 |
Pins 1 & 2 closed |
|
2 |
Pins 3 & 4 closed | |
|
3 |
Pins 5 & 6 closed | |
|
4 |
Pins 7 & 8 closed | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
2MB |
(2) 1M x 9 |
None |
None |
None |
|
4MB |
(2) 1M x 9 |
(2) 1M x 9 |
None |
None |
|
6MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
None |
|
8MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
