Card Type	Sound card
Chip Set	Opti
Maximum Onboard Memory	Unidentified
I/O Options	Game/MIDI port, audio in - CD-ROM (2), speaker out, microphone in, line in, wavetable connector
Data Bus	16-bit ISA
Card Size	Half-length, half-height card

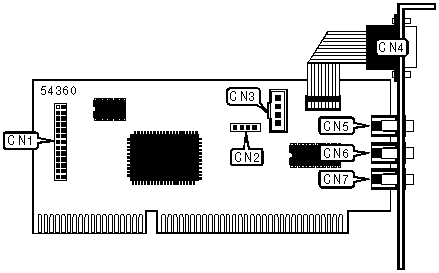

CONNECTIONS
Function	Label	Function	Label
Wavetable connector	CN1	Speaker out	CN5
Audio in - CD-ROM	CN2	Line in	CN6
Audio in - CD-ROM	CN3	Microphone in	CN7
Game/MIDI port	CN4
