Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	None
I/O Options	CD-ROM audio (3), CD-ROM interface (4), game/MIDI port, line in (2), line/speaker out (2), microphone in (2), volume, wavetable
Data Bus	16-bit ISA
Floppy drives supported	None

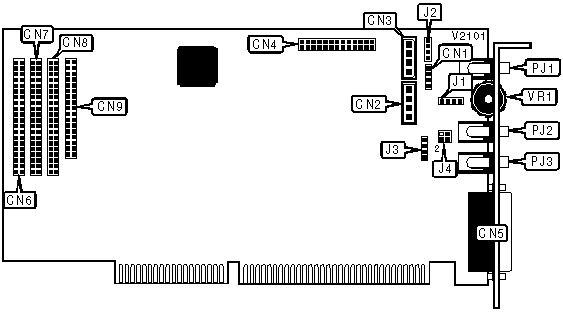

CONNECTIONS
Function	Label	Function	Label
Sony CD - audio in	CN1	Sony CD-ROM interface	CN9
Mitsumi CD - audio in	CN2	Mic in	J1
Panasonic/IDE CD - audio in	CN3	Line in	J2
Wavetable	CN4	Line/speaker out	J3
Game/MIDI port	CN5	Mic in	PJ1
Enhanced IDE CD-ROM interface	CN6	Line in	PJ2
Panasonic CD-ROM interface	CN7	Line/speaker out	PJ3
Mitsumi CD-ROM interface	CN8	Volume	VR1

USER CONFIGURABLE SETTINGS
Function	Label	Position
Amplifier enabled	J4	Pins 1 & 2 closed
Amplifier disabled	J4	Pins 3 & 4 closed
