Card Type	Sound card
Chip Set	Dream
Maximum Onboard Memory	None
I/O Options	Audio line in (2), audio microphone/line in (2), audio out (2), CD-ROM audio (3), CD-ROM interface, game/MIDI port, MIDI interface (2), microphone in (2), wavetable
Data Bus	16-bit ISA
Floppy drives supported	None

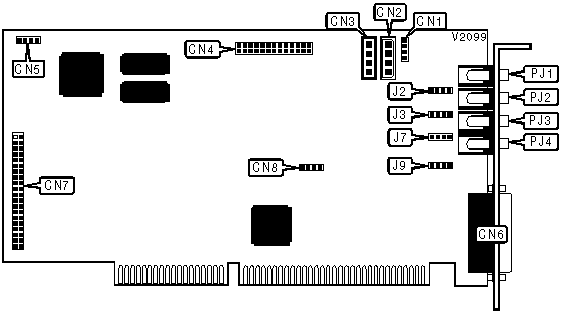

CONNECTIONS
Function	Label	Function	Label
Sony CD - audio in	CN1	Audio out	J2
Panasonic/IDE CD - audio in	CN2	Audio line in	J3
Mitsumi CD - audio in	CN3	Audio mic/line in	J7
Wavetable	CN4	Mic in	J9
MIDI interface	CN5	Audio out	PJ1
Game/MIDI port	CN6	Audio line in	PJ2
Enhanced IDE CD-ROM interface	CN7	Audio mic/line in	PJ3
MIDI interface	CN8	Mic in	PJ4
