SIIG, INC.
PARALLEL PRO
|
Card Type |
Parallel card |
|
Chip Set |
Unidentified |
|
I/O Options |
parallel port |
|
Data Bus |
16-bit ISA |
|

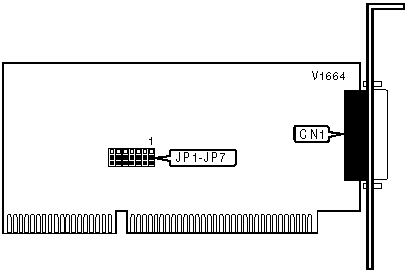

CONNECTIONS | |
|
Function |
Label |
|
Parallel port |
CN1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Parallel pro enabled |
JP7 |
Pins 1 & 2 closed |
|
Parallel pro disabled |
JP7 |
Pins 2 & 3 closed | |
|
MODE CONFIGURATION | |||
|
Mode |
JP1 |
JP2 | |
|
SPP/BPP |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
EPP |
Pins 1 & 2 closed |
Pins 2 & 3 closed | |
|
ECP |
Pins 2 & 3 closed |
Pins 1 & 2 closed | |
| » |
EPP/ECP |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
DMA SELECTION | |||
|
Setting |
JP3 |
JP5 | |
|
DMA 1 |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
| » |
DMA 3 |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
BASE I/O ADDRESS SELECTION | ||
|
Address |
JP6 | |
| » |
278h |
Pins 1 & 2 closed |
|
378h |
Pins 2 & 3 closed | |
|
PARALLEL PORT INTERRUPT SELECTION | ||
|
IRQ |
JP4 | |
| » |
5 |
Pins 1 & 2 closed |
|
7 |
Pins 2 & 3 closed | |
