Card Type	V.35/RS-422 to HSSI Interface Converter
Chip Set	Unidentified
I/O Options	V.35/RS-422 DCE/DTE port, HSSI DCE/DTE port, power
Maximum Data Rate	10Mbps
Data Bus	External

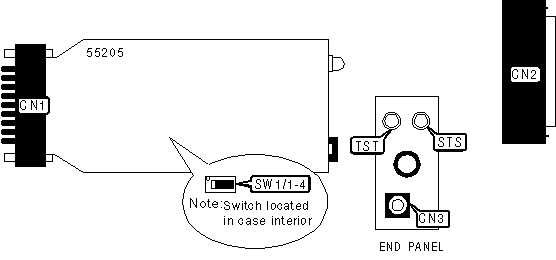

CONNECTIONS
Function	Label	Function	Label
V.35/RS-422 DCE/DTE port (34-pin male connector)	CN1	HSSI DCE/DTE port (50-pin connector)	CN2
Power	CN3

GAPPED CLOCK
Setting		SW1/1	SW1/2
»	HSSI gapped clock disabled	On	Off
	HSSI gapped clock enabled. Data flow is interrupted by an idle clock signal	Off	On

SYNCHRONIZATION METHOD
Setting		SW1/3	SW1/4
»	Data skips sync circuit	Off	On
	Data passes through sync circuit	On	Off

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
STS	Green	On	Both DTR and DSR signals are active
STS	Green	Off	DTR and/or DSR signals are inactive
TST	Red	On	Device is conducting a loopback test
TST	Red	Off	Device is not conducting a loopback test
