PRO AUDIO SPECTRUM 16 BASIC (650-0053-52)

MEDIA VISION TECHNOLOGY, INC.

Card Type

Sound card

Chip Set

Unidentified

Maximum Onboard Memory

Unidentified

I/O Options

Game/MIDI port, audio in, microphone in, stereo line in, stereo line out

Data Bus

16-bit ISA

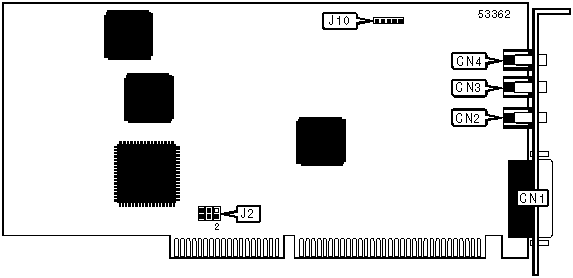

CONNECTIONS

Function

Label

Function

Label

Game/MIDI port

CN1

Stereo line in

CN4

Microphone in

CN2

Audio in - CD-ROM

J10

Stereo line out

CN3

BOARD ID SELECTION

Setting

J2/pins 1 & 2

J2/pins 3 & 4

J2/pins 5 & 6

»
0

Open

Open

Open

1

Closed

Open

Open

2

Open

Closed

Open

3

Closed

Closed

Open

4

Open

Open

Closed

Note: When ID 4 is selected, the base I/O address is forced to 388h. For all other ID’s the software scans for available settings. Refer to the manufacturer’s documentation for possible settings.

Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	Game/MIDI port, audio in, microphone in, stereo line in, stereo line out
Data Bus	16-bit ISA

CONNECTIONS
Function	Label	Function	Label
Game/MIDI port	CN1	Stereo line in	CN4
Microphone in	CN2	Audio in - CD-ROM	J10
Stereo line out	CN3

BOARD ID SELECTION
Setting		J2/pins 1 & 2	J2/pins 3 & 4	J2/pins 5 & 6
»	0	Open	Open	Open
	1	Closed	Open	Open
	2	Open	Closed	Open
	3	Closed	Closed	Open
	4	Open	Open	Closed
Note: When ID 4 is selected, the base I/O address is forced to 388h. For all other ID’s the software scans for available settings. Refer to the manufacturer’s documentation for possible settings.
