NEC TECHNOLOGIES, INC.
2-MB MEMORY EXPANSION BOARD
|
Card Type |
Memory |
|
Chipset |
N/A |
|
Maximum Onboard Memory |
2MB DRAM |
|
Data Bus |
Proprietary |
|

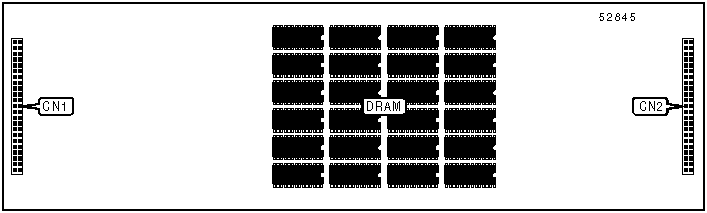

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Header for system memory board |
CN1 |
Header for system memory board |
CN2 |
|
DRAM CONFIGURATION |
|
The memory on this board is factory installed and not user-configurable. |
|
MISCELLANEOUS TECHNICAL NOTES |
|
This board attaches to the NEC Technologies, Inc. PowerMate 386/20 system memory board. It can only be used in this system. |
