Card Type	Sound card/CD-ROM
Chipset Controller	Unidentified
I/O Options	3D space processor interface, CD audio, CD-ROM interfaces (4), midi/game port, microphone jack, line in, line out, speaker jack, wavetable interface
Maximum DRAM	N/A

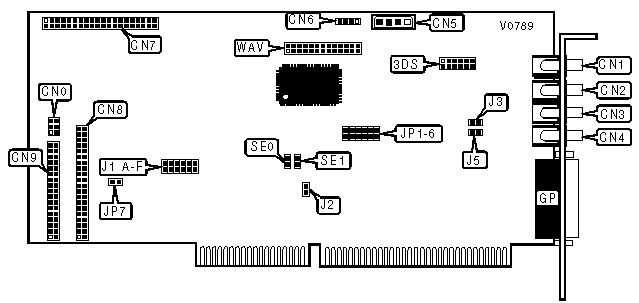

CONNECTIONS
Purpose	Location	Purpose	Location
3D space processor	3DS	Panosonic CD-ROM interface	CN7
Speaker jack	CN1	Mitsumi CDROM interface	CN8
Line-out	CN2	Sony CDROM interface	CN9
Line-in	CN3	SCSI CDROM extension	CN0
Microphone jack	CN4	Midi/Game port	GP
Panosonic CDROM audio	CN5	Wavetable interface	WAV
Sony CDROM audio	CN6

GAME PORT CONFIGURATION
Mode		J1 A
»	Enabled	Open
	Disabled	Closed

GAME PORT ADDRESS SELECTION
Address		J1 F
»	201h	Open
	200h	Closed

MIDI PORT CONFIGURATION
Mode		J1 D
»	Enabled	Open
	Disabled	Closed

MIDI PORT ADDRESS SELECTION
Address		J1 E
»	330h	Open
	320h	Closed

WINDOWS SOUND MODE PORT ADDRESS SELECTION
Address		SE0	SE1
»	530h	Closed	Closed
	604h	Open	Closed
	E80h	Closed	Open
	F40h	Open	Open

MIDI INTERRUPT SELECTION
IRQ		JP1	JP2	JP3
»	9	Closed	Open	Open
	5	Open	Open	Closed
	7	Open	Closed	Open
	None	Open	Open	Open

SOUND CARD ADDRESS SELECTION
Address	J1 B	J1 C
220h	Open	Closed
240h	Closed	Open
260h	Open	Open
Disable	Closed	Closed

CD-ROM TYPE SELECTION
Type		JP7
»	Panasonic	Closed
	Sony	Open
	Mitsumi	Open
	SCSI	Open

CD-ROM INTERFACE INTERRUPT SELECTION
IRQ		JP4	JP5	JP6
»	None	Open	Open	Open
	5	Open	Open	Closed
	12	Open	Closed	Open
	15	Closed	Open	Open

CD-ROM INTERFACE ADDRESS SELECTION
Address		J2
»	340h	Open
	320h	Closed

MICROPHONE SELECTION
Setting		J3	J5
»	All Mic	Closed	Closed
	Dynamic Mic only	Open	Open
