J-BOND COMPUTER SYSTEMS CORPORATION
PROACTIVE 3D SOUND EFFECTS CARD
|
Card Type |
Sound card |
|
Chip Set |
Yamaha |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Audio in - CD-ROM (3), Microphone in, line in, line out, speaker out, game/MIDI port |
|
Data Bus |
16-bit ISA |
|

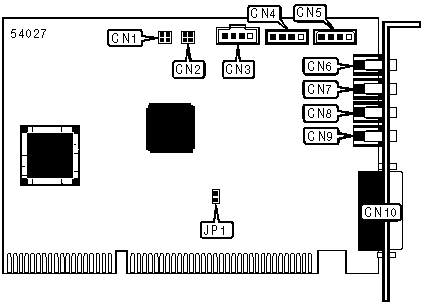

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Auxillary 2 |
CN1 |
Microphone in |
CN6 |
|
Mono in |
CN2 |
Line in |
CN7 |
|
Audio in - CD-ROM (Sony) |
CN3 |
Line out |
CN8 |
|
Audio in - CD-ROM (Mitsumi) |
CN4 |
Speaker out |
CN9 |
|
Audio in - CD-ROM (Panasonic) |
CN5 |
Game/MIDI port |
CN10 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
YMF704 FM and wavetable synthesizer chip not installed |
JP1 |
Open |
|
YMF704 FM and wavetable synthesizer chip installed, MIDI hardware disabled |
JP1 |
Open |
|
YMF704 FM and wavetable synthesizer chip installed, MIDI hardware enabled |
JP1 |
Closed |
