INTEL CORPORATION
ABOVE BOARD PLUS I/O, ABOVE BOARD PS/286
|
Card Type |
Memory card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
2MB DRAM |
|
I/O Options |
Daughter board connector, IBM PC/XT socket, serial port, parallel port |
|
Data Bus |
16-bit ISA |
|
Floppy drives supported |
None |
|

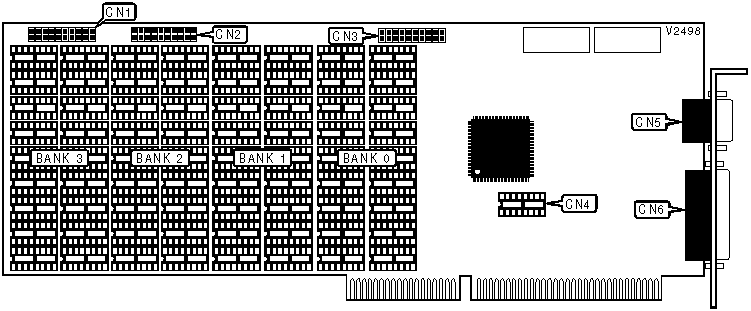

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Daughter board connector |
CN1 |
IBM PC/XT selection socket |
CN4 |
|
Daughter board connector |
CN2 |
Serial port |
CN5 |
|
Daughter board connector |
CN3 |
Parallel port |
CN6 |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
512KB |
(18) 256K x 1 |
None |
None |
None |
|
1024KB |
(18) 256K x 1 |
(18) 256K x 1 |
None |
None |
|
1536KB |
(18) 256K x 1 |
(18) 256K x 1 |
(18) 256K x 1 |
None |
|
2048KB |
(18) 256K x 1 |
(18) 256K x 1 |
(18) 256K x 1 |
(18) 256K x 1 |
