Card Type	Multi I/O card
Chipset/Controller	SIS
I/O Options	Game port, parallel port, serial ports (2)
Maximum DRAM	N/A

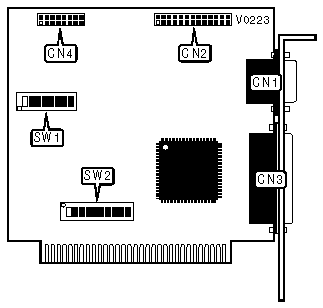

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port 1	CN1	Parallel port	CN3
Serial port 2	CN2	Game port	CN4

SERIAL PORT CONFIGURATION
Port 1 (CN1)		SW1/switch 1	SW1/switch 2	SW1/switch 3	SW1/switch 4
»	COM1	On	Off	Off	Off
	COM2	Off	Off	On	Off
	COM3	Off	On	Off	Off
	COM4	Off	Off	Off	On
	Disabled	Off	Off	Off	Off

SERIAL PORT CONFIGURATION
Port 2 (CN2)		SW1/switch 5	SW1/switch 6	SW1/switch 7	SW1/switch 8
»	COM1	On	Off	Off	Off
	COM2	Off	Off	On	Off
	COM3	Off	On	Off	Off
	COM4	Off	Off	Off	On
	Disabled	Off	Off	Off	Off

SERIAL PORT INTERRUPT SELECT
Port 1 (CN1)		SW2/switch 3	SW2/switch 4	SW2/switch 5	SW2/switch 6
»	IRQ9	On	Off	Off	Off
	IRQ3	Off	On	Off	Off
	IRQ4	Off	Off	On	Off
	IRQ5	Off	Off	Off	On

SERIAL PORT INTERRUPT SELECT
Port 2 (CN2)	SW2/switch 7	SW2/switch 8	SW2/switch 9	SW2/switch 10
IRQ3	Off	On	Off	Off
IRQ4	Off	Off	On	Off
IRQ5	Off	Off	Off	On
IRQ9	On	Off	Off	Off

PARALLEL PORT CONFIGURATION
LPT		SW2/switch 1	SW2/switch 2
»	1	On	Off
	2	Off	On
	Disabled	Off	Off

MISCELLANEOUS TECHNICAL NOTE

On some versions of the KW-524H the switches may be substituted for jumpers, in which case
