Card Type

Serial card

Chip Set

Unidentified

Maximum Onboard Memory

Unidentified

I/O Options

Serial ports (8 RJ-45),

Hard Drives supported

None

Floppy drives supported

None

Data Bus

16-bit ISA

Card Size

Half-length

CONNECTIONS

Function

Label

Function

Label

Serial port 0

CH0

Serial port 5

CH5

Serial port 1

CH1

Serial port 6

CH6

Serial port 2

CH2

Serial port 7

CH7

Serial port 3

CH3

Header connector to cascade boards

CH4

Serial port 4

CH4

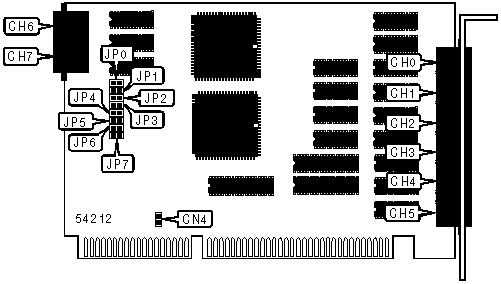

SERIAL PORT ADDRESS SELECTION

Port 0

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

Port 7

JP0

JP1

JP2

100h

108h

110h

118h

120h

128h

130h

128h

Closed

Closed

Closed

180h

148h

150h

158h

160h

168h

170h

168h

Open

Closed

Closed

200h

2C8h

2DOh

2D8h

2E0h

2E8h

2F0h

2F8h

Closed

Closed

Open

210h

2C8h

2D0h

2D8h

2E8h

2E8h

3F8h

2F8h

Closed

Open

Open

2C0h

600h

A00h

E00h

1200

1600h

1A00h

1E00h

Closed

Open

Closed

2C0h

610h

A10h

E10h

1200

1600h

1A00h

1E00h

Open

Open

Closed

SHARED INTERRUPT SELECTION

IRQ

JP3

JP4

JP5

JP6

JP7

IRQ2

Open

Open

Open

Closed

Closed

IRQ3

Closed

Open

Open

Open

IRQ4

Open

Closed

Open

Open

IRQ5

Open

Open

Open

Open

IRQ7

Open

Open

Closed

Open

Disabled

Open

Open

Open

Open

DISCRETE INTERRUPT SELECTION

Port

0

1

2

3

4

5

6

7

JP3

JP4

JP5

JP6

JP7

4

3

4

3

4

3

4

3

Closed

Closed

Open

Open

Open

7

7

7

7

4

3

4

3

Closed

Closed

Open

Open

Closed

5

2

10

11

12

15

4

3

Closed

Closed

Closed

Closed

Closed

5

7

10

11

12

15

4

3

Closed

Closed

Closed

Closed

Open

10

11

12

15

4

3

4

3

Closed

Closed

Closed

Open

Open

Note: Discrete interrupt selection allows each port to be treated as a distinct component. Therefore, ports may be assigned separate or shared IRQs.

MISCELLANEOUS TECHNICAL NOTES

When cascading boards; use IRQ3, 4, or 5, as a shared interrupt on the primary board. Set the consecutive boards using JP5, and JP6 only. Connect a wire from CN7(location unidentified) on the first board to CN4 on the consecutive boards.
