Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	N/A
I/O Options	MIDI/game port, microphone in, line in, volume control, speaker out
Hard Drives supported	None
Floppy drives supported	None
Data Bus	8-bit ISA
Card Size	Half-length, full-height card

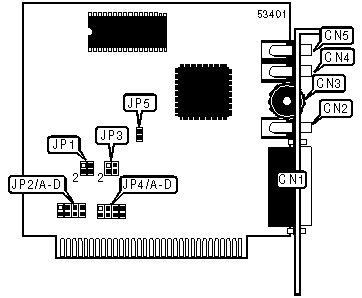

CONNECTIONS
Function	Label	Function	Label
MIDI/game port	CN1	Line in	CN4
Speaker out	CN2	Microphone in	CN5
Volume control	CN3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Game port enabled	JP5	Closed
	Game port disabled	JP5	Open

DMA CHANNEL SELECTION
Channel		JP1/pins 1 & 2	JP1/pins 3 & 4	JP3/pins 1 & 2	JP3/pins 3 & 4
»	1	Open	Closed	Open	Closed
	3	Closed	Open	Closed	Open

I/O PORT ADDRESS SELECTION
Address		JP2/A	JP2/B	JP2/C	JP2/D
»	220h	Open	Open	Closed	Closed
	240h	Closed	Closed	Open	Open

DIGITAL AUDIO INTERRUPT SELECTION
IRQ		JP4/A	JP4/B	JP4/C	JP4/D
	IRQ2	Open	Open	Open	Closed
	IRQ3	Open	Open	Closed	Open
	IRQ5	Open	Closed	Open	Open
»	IRQ7	Closed	Open	Open	Open
