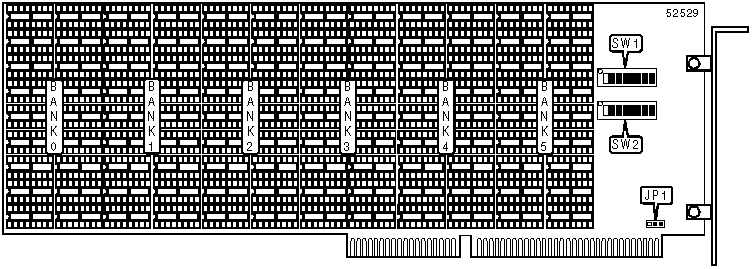

EMULEX CORPORATION
MEGA MEMORY MODULE
|
Card Type |
Memory card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
3MB DRAM |
|
I/O Options |
None |
|
Data Bus |
16-bit ISA |
|
Floppy drives supported |
None |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
Parity enabled |
JP1 |
Pins 1 & 2 closed | |
|
Parity disabled |
JP1 |
Pins 2 & 3 closed | |
| » |
Factory configured - do not alter |
SW1/6 |
Off |
| » |
Factory configured - do not alter |
SW1/7 |
Off |
| » |
Factory configured - do not alter |
SW1/8 |
Off |
| » |
Factory configured - do not alter |
SW2/8 |
Off |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
128KB |
(18) 4164 |
None |
None |
|
256KB |
(18) 4164 |
(18) 4164 |
None |
|
384KB |
(18) 4164 |
(18) 4164 |
(18) 4164 |
|
512KB |
(18) 4164 |
(18) 4164 |
(18) 4164 |
|
640KB |
(18) 4164 |
(18) 4164 |
(18) 4164 |
|
768KB |
(18) 4164 |
(18) 4164 |
(18) 4164 |
|
512KB |
(18) 41256 |
None |
None |
|
1024KB |
(18) 41256 |
(18) 41256 |
None |
|
1536KB |
(18) 41256 |
(18) 41256 |
(18) 41256 |
|
2048KB |
(18) 41256 |
(18) 41256 |
(18) 41256 |
|
2560KB |
(18) 41256 |
(18) 41256 |
(18) 41256 |
|
3072KB |
(18) 41256 |
(18) 41256 |
(18) 41256 |
|
DRAM CONFIGURATION (CON’T) | |||
|
Size |
Bank 3 |
Bank 4 |
Bank 5 |
|
128KB |
None |
None |
None |
|
256KB |
None |
None |
None |
|
384KB |
None |
None |
None |
|
512KB |
(18) 4164 |
None |
None |
|
640KB |
(18) 4164 |
(18) 4164 |
None |
|
768KB |
(18) 4164 |
(18) 4164 |
(18) 4164 |
|
512KB |
None |
None |
None |
|
1024KB |
None |
None |
None |
|
1536KB |
None |
None |
None |
|
2048KB |
(18) 41256 |
None |
None |
|
2560KB |
(18) 41256 |
(18) 41256 |
None |
|
3072KB |
(18) 41256 |
(18) 41256 |
(18) 41256 |
|
BASE MEMORY SELECTION | ||
|
Size |
SW1/1 |
SW1/2 |
|
None |
Off |
Off |
|
128KB |
On |
Off |
|
256KB |
Off |
On |
|
384KB |
On |
On |
|
EXTENDED MEMORY SELECTION | |||
|
Size |
SW1/3 |
SW1/4 |
SW1/5 |
|
None |
Off |
Off |
Off |
|
512KB |
Off |
On |
Off |
|
1024KB |
On |
On |
Off |
|
1536BK |
Off |
Off |
On |
|
2048KB |
On |
Off |
On |
|
2560KB |
Off |
On |
On |
|
3072KB |
On |
On |
On |
|
BASE MEMORY ADDRESS SELECTION | ||
|
Size |
SW2/1 |
SW2/2 |
|
None |
Off |
Off |
|
256KB |
On |
Off |
|
384KB |
Off |
On |
|
512KB |
On |
On |
|
EXTENDED MEMORY ADDRESS SELECTION | |||||
|
Size |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
SW2/7 |
|
1MB |
On |
Off |
Off |
Off |
Off |
|
1.5MB |
Off |
On |
Off |
Off |
Off |
|
2MB |
On |
On |
Off |
Off |
Off |
|
2.5MB |
Off |
Off |
On |
Off |
Off |
|
3MB |
On |
Off |
On |
Off |
Off |
|
3.5MB |
Off |
On |
On |
Off |
Off |
|
4MB |
On |
On |
On |
Off |
Off |
|
4.5MB |
Off |
Off |
Off |
On |
Off |
|
5MB |
On |
Off |
Off |
On |
Off |
|
5.5MB |
Off |
On |
Off |
On |
Off |
|
6MB |
On |
On |
Off |
On |
Off |
|
6.5MB |
Off |
Off |
On |
On |
Off |
|
7MB |
On |
Off |
On |
On |
Off |
|
7.5MB |
Off |
On |
On |
On |
Off |
|
8MB |
On |
On |
On |
On |
Off |
|
8.5MB |
Off |
Off |
Off |
Off |
On |
|
9MB |
On |
Off |
Off |
Off |
On |
|
9.5MB |
Off |
On |
Off |
Off |
On |
|
10MB |
On |
On |
Off |
Off |
On |
|
10.5MB |
Off |
Off |
On |
Off |
On |
|
11MB |
On |
Off |
On |
Off |
On |
|
11.5MB |
Off |
On |
On |
Off |
On |
|
12MB |
On |
On |
On |
Off |
On |
|
12.5MB |
Off |
Off |
Off |
On |
On |
|
13MB |
On |
Off |
Off |
On |
On |
|
13.5MB |
Off |
On |
Off |
On |
On |
|
14MB |
On |
On |
Off |
On |
On |
|
14.5MB |
Off |
Off |
On |
On |
On |
|
15MB |
On |
Off |
On |
On |
On |
|
None |
On |
On |
On |
On |
On |
