DIAMOND FLOWER, INC.
MIO-200
|
Card Type |
Multi-I/O |
|
Chipset |
Unidentified |
|
I/O Options |
Clock/calendar, floppy drive interfaces (2), game port, parallel port, serial ports (2) |
|
Data Bus |
8-bit ISA |
|
Floppy Drives Supported |
Four 360KB drives |
|

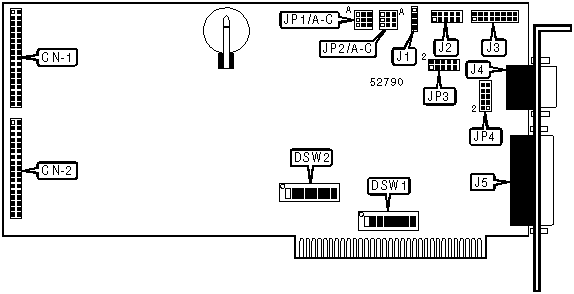

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Floppy interface 1 |
CN-1 |
Game port |
J3 |
|
Floppy interface 2 |
CN-2 |
Serial port 1 |
J4 |
|
External battery connector |
J1 |
Parallel port |
J5 |
|
Serial port 2 |
J2 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Port 2 CTS normal |
JP1/A |
Pins 1 & 2 closed |
|
Port 2 CTS forced high |
JP1/A |
Pins 2 & 3 closed | |
| » |
Port 2 DSR normal |
JP1/B |
Pins 1 & 2 closed |
|
Port 2 DSR forced high |
JP1/B |
Pins 2 & 3 closed | |
| » |
Port 2 DCD normal |
JP1/C |
Pins 1 & 2 closed |
|
Port 2 DCD forced high |
JP1/C |
Pins 2 & 3 closed | |
| » |
Port 1 CTS normal |
JP2/A |
Pins 1 & 2 closed |
|
Port 1 CTS forced high |
JP2/A |
Pins 2 & 3 closed | |
| » |
Port 1 DSR normal |
JP2/B |
Pins 1 & 2 closed |
|
Port 1 DSR forced high |
JP2/B |
Pins 2 & 3 closed | |
| » |
Port 1 DCD normal |
JP2/C |
Pins 1 & 2 closed |
|
Port 1 DCD forced high |
JP2/C |
Pins 2 & 3 closed | |
| » |
Parallel port address is 378h |
DSW2/3 |
Off |
|
Parallel port address is 278h |
DSW2/3 |
On | |
| » |
Serial port 1 enabled |
DSW2/4 |
On |
|
Serial port 1 disabled |
DSW2/4 |
Off | |
| » |
Serial port 2 enabled |
DSW2/5 |
On |
|
Serial port 2 disabled |
DSW2/5 |
Off | |
|
USER CONFIGURABLE SETTINGS (CON’T) | |||
|
Setting |
Label |
Position | |
| » |
Parallel port enabled |
DSW2/6 |
On |
|
Parallel port disabled |
DSW2/6 |
Off | |
| » |
Game port enabled |
DSW2/7 |
On |
|
Game port disabled |
DSW2/7 |
Off | |
| » |
Clock/calendar enabled |
DSW2/8 |
On |
|
Clock/calendar disabled |
DSW2/8 |
Off | |
|
CLOCK/CALENDAR INTERRUPT SELECTION | |||
|
Setting |
DSW1/7 |
DSW1/8 | |
| » |
IRQ2 |
Off |
On |
|
IRQ5 |
On |
Off | |
|
PARALLEL PORT INTERRUPT SELECTION | |||
|
Setting |
DSW1/5 |
DSW1/6 | |
|
IRQ5 |
Off |
On | |
| » |
IRQ7 |
On |
Off |
|
SERIAL PORT ADDRESS SELECTION | ||||
|
Port 1 |
Port 2 |
DSW2/1 |
DSW2/2 | |
| » |
3F8h |
2F8h |
On |
On |
|
2F8h |
3E8h |
Off |
On | |
|
3E8h |
2E8h |
On |
Off | |
|
SERIAL PORT 1 INTERRUPT SELECTION | |||
|
Setting |
DSW1/3 |
DSW1/4 | |
|
IRQ3 |
On |
Off | |
| » |
IRQ4 |
Off |
On |
|
SERIAL PORT 2 INTERRUPT SELECTION | |||
|
Setting |
DSW1/1 |
DSW1/2 | |
| » |
IRQ3 |
On |
Off |
|
IRQ4 |
Off |
On | |
|
SERIAL PORT 1 MODE SELECTION | ||
|
Setting |
JP4 | |
| » |
DTE |
Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10 closed |
|
DCE |
Pins 1 & 2, 3 & 5, 4 & 6, 7 & 9, 8 & 10 closed | |
|
SERIAL PORT 2 MODE SELECTION | ||
|
Setting |
JP3 | |
| » |
DTE |
Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10 closed |
|
DCE |
Pins 1 & 3, 2 & 4, 5 & 7, 6 & 8, 9 & 10 closed | |
