Card Type	Serial
Processor	80186
Processor Speed	10MHz
Chip Set	Unidentified
Maximum Onboard Memory	512KB DRAM
I/O Options	Serial ports (2)
Data Bus	16-bit ISA

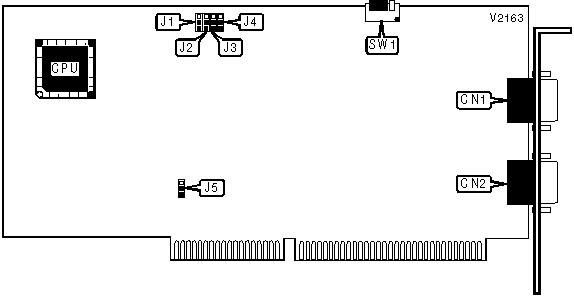

CONNECTIONS
Function	Label	Function	Label
Serial port 2 (RS-422)	CN1	Serial port 1 (RS-422)	CN2

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	J1	Pins 1 & 2 closed
»	Factory configured - do not alter	J2	Pins 1 & 2 closed
»	Factory configured - do not alter	J3	Pins 1 & 2 closed
»	Factory configured - do not alter	J4	Pins 1 & 2 closed
»	Factory configured - do not alter	J5	Pins 1 & 2 closed
»	Factory configured - do not alter	SW1/4	Off

BASE I/O ADDRESS
Setting	SW1/1	SW1/2	SW1/3
108h	Off	Off	On
118h	Off	On	Off
128h	Off	On	On
208h	On	Off	Off
228h	On	Off	On
308h	On	On	Off
328h	On	On	On
