Card Type	Memory card
Chipset Controller	N/A
I/O Options	Memory
Maximum DRAM	8MB

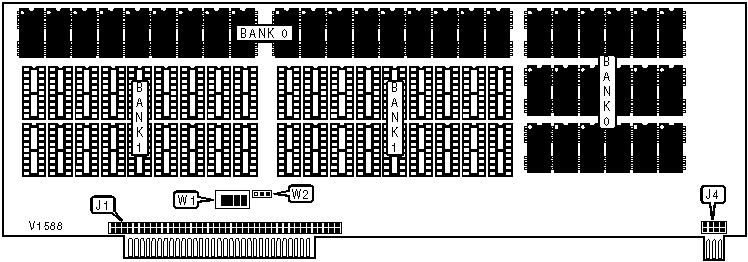

CONNECTIONS
Purpose	Location	Purpose	Location
80-pin memory board interface	J1	8-pin memory board interface	J4
Note: J1 & J2 are for installation of a second memory board to the PEI-303.

DRAM CHIP SIZE CONFIGURATION
Chip	W1/3	W2
256KB	Off	Pins 2 & 3 closed
1MB	On	Pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(36) 256K x 1	NONE
2MB	(36) 256K x 1	(36) 256K x 1
4MB	(36) 1024K x 1	NONE
8MB	(36) 1024K x 1	(36) 1024K x 1

FACTORY CONFIGURED - DO NOT ALTER
Switch	Position
W1/1	Off
W1/2	Off
W1/4	Off

MISCELLANEOUS TECHNICAL NOTE

The second memory board is restricted to use only 1MB DRAM chips when connected to the PEI-303 board.
