Card Type	Sound card
Chipset/Controller	Creative Technology
I/O Options	CD-ROM interface, game/MIDI port, headphone jack, audio line in/line-out, microphone jack, speaker jack
Maximum DRAM	32MB

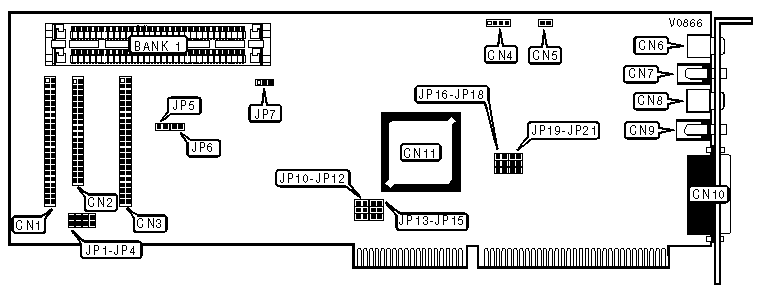

CONNECTIONS
Purpose	Location	Purpose	Location
Creative CD-ROM interface	CN1	Microphone jack	CN7
Sony CD-ROM interface	CN2	Audio line-out jack	CN8
Mitsumi CD-ROM interface	CN3	Speaker jack	CN9
CD in connector	CN4	Game/MIDI port	CN10
PC speaker connector	CN5	Advanced Signal Processor socket	CN11
Audio line-in jack	CN6

CD-ROM TYPE SELECT
Type		JP1	JP2	JP3	JP4
»	Creative	Open	Open	Open	Closed
	Sony	Open	Open	Closed	Open
	Mitsumi	Open	Closed	Open	Open
	Other	Closed	Open	Open	Open

MITSUMI CD-ROM DRIVE I/O ADDRESS
Address		JP5	JP6
»	340h	Closed	Open
	Alternate	Open	Closed

MITSUMI CD-ROM DRIVE DMA SELECT
Channel		JP10	JP11
»	DMA7	Open	Closed
	DMA6	Closed	Open

AUDIO/MITSUMI CD-ROM DRIVE INTERRUPT SELECT
IRQ		JP13	JP14	JP15
»	IRQ11	Open	Open	Closed
	IRQ3	Closed	Open	Open
	IRQ10	Open	Closed	Open

MPU-401 EMULATION
Setting		JP12
»	Enabled	Closed
	Disabled	Open

ADVANCED SIGNAL PROCESSOR
Setting		JP16	JP17
»	Disabled/not installed	Closed	Closed
	Enabled/installed	Open	Open

GAME PORT
Setting		JP18
»	Enabled	Closed
	Disabled	Open

CD-AUDIO I/O ADDRESS
Address		JP19	JP20
»	220h	Closed	Closed
	240h	Open	Closed
	260h	Closed	Open
	280h	Open	Open

MIDI I/O ADDRESS
Address		JP21
»	330h	Closed
	300h	Open

DRAM CONFIGURATION
Size		JP7	Bank 0	Bank 1
»	512KB	Pins 2 & 3 closed	512KB	None
	2MB	Pins 1 & 2 closed	Disabled	(2) 256K x 36
	4MB	Pins 1 & 2 closed	Disabled	(2) 512K x 36
	8MB	Pins 1 & 2 closed	Disabled	(2) 1M x 36
	16MB	Pins 1 & 2 closed	Disabled	(2) 2M x 36
	32MB	Pins 1 & 2 closed	Disabled	(2) 4M x 36
Note:The location of Bank 0 is not specified in manufacturer’s documentation.
