BIOSTAR MICROTECH INTERNATIONAL CORPORATION
BS-310
|
Card Type |
Multi-I/O card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Game port, parallel port, serial ports (2) |
|
Data Bus |
32-bit ISA |
|

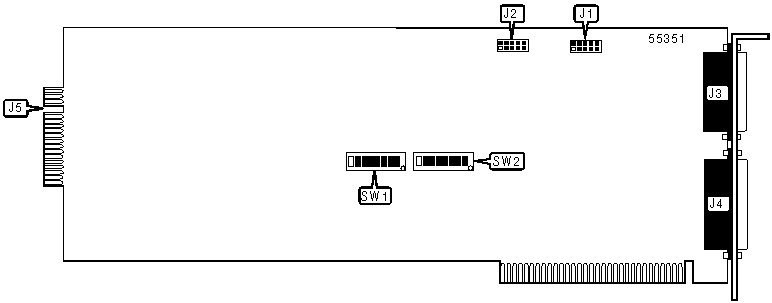

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Serial port 1 |
J1 |
Parallel port |
J4 |
|
Serial port 2 |
J2 |
Drive adapter connector |
J5 |
|
Game port |
J3 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Setting |
Label |
Position |
|
Serial port 1 enabled |
SW1/5 |
On |
|
Serial port 1 disabled |
SW1/5 |
Off |
|
Serial port 2 enabled |
SW1/6 |
On |
|
Serial port 2 disabled |
SW1/6 |
Off |
|
Game port enabled |
SW1/7 |
On |
|
Game port disabled |
SW1/7 |
Off |
|
Real time clock enabled |
SW1/8 |
On |
|
Real time clock disabled |
SW1/8 |
Off |
|
PARALLEL PORT ADDRESS SELECTION | ||
|
Address |
SW1/3 |
SW1/4 |
|
LPT1 (378h) |
On |
Off |
|
LPT2 (278h) |
Off |
On |
|
Disabled |
Off |
Off |
|
PARALLEL PORT INTERRUPT SELECTION | ||
|
IRQ |
SW2/5 |
SW2/6 |
|
5 |
Off |
On |
|
7 |
On |
Off |
|
Disabled |
Off |
Off |
|
SERIAL PORT 1 INTERRUPT SELECTION | ||
|
IRQ |
SW2/3 |
SW2/4 |
|
3 |
On |
Off |
|
4 |
Off |
On |
|
SERIAL PORT 2 INTERRUPT SELECTION | ||
|
IRQ |
SW2/1 |
SW2/2 |
|
3 |
On |
Off |
|
4 |
Off |
On |
|
REAL TIME CLOCK INTERRUPT SELECTION | ||
|
IRQ |
SW2/7 |
SW2/8 |
|
2 |
Off |
On |
|
5 |
On |
Off |
