Card Type	Sound card
Chip Set	Unidentified
I/O Options	Line in, microphone in, line out, game/MIDI port, audio in - CD-ROM, TAD connector, auxiliary connector, video connector
Data Bus	32-bit PCI
Card Size	Half-length, half-height card

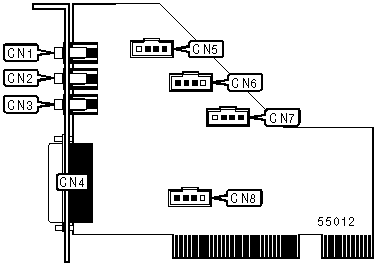

CONNECTIONS
Function	Label	Function	Label
Line in	CN1	Audio in - CD-ROM	CN5
Microphone in	CN2	TAD connector	CN6
Line out	CN3	Auxiliary line out	CN7
Game/MIDI port	CN4	Video connector	CN8
