ANTEC, INC.
TELEVIEWER,
TELEVIEWER PLUS
|
Card Type |
Tuner card, Frame capture, Video card (Televiewer Plus) |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
DB-9 connector (2), speaker, TV antenna connector |
|
Data Bus |
16-bit ISA |
|

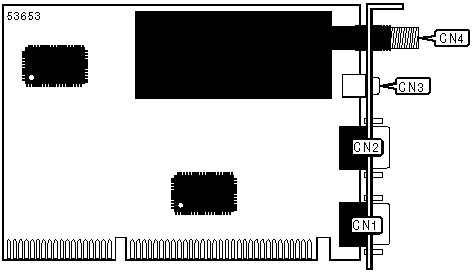

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
VGA via DB-9 connector |
CN1 |
Speaker connector |
CN3 |
|
Monitor via DB-9 connector |
CN2 |
TV antenna connector |
CN4 |
|
MISCELLANEOUS TECHNICAL NOTES |
|
TeleViewer Plus allows a scalable screen, frame capture and television display within Windows. TeleViewer does not. |
