Card Type	Sound card
Chip Set	AMD
I/O Options	CD-ROM interfaces, wave-table interface, game/MIDI port, line in, microphone in, line/speaker out, CD-ROM audio in (2)
Data Bus	16-bit ISA

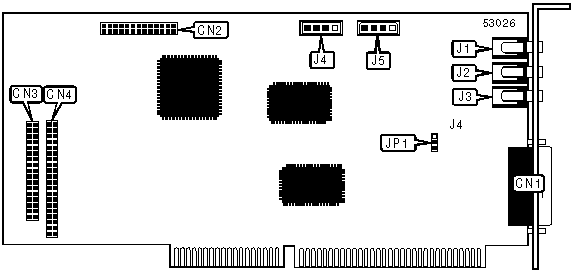

CONNECTIONS
Function	Label	Function	Label
Game/MIDI port	CN1	Line in phonejack	J2
Feature connector	CN2	Line/Speaker out phonejack	J3
Wavetable connector	CN3	Audio in - CD-ROM (Mitsumi)	J4
ATAPI CD-ROM connector	CN4	Audio in - CD-ROM (Panasonic)	J5
Microphone jack	J1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Speak out	JP1	Pins 1&2 closed
	Line out	JP1	Pins 2&3 closed
