AST RESEARCH, INC.

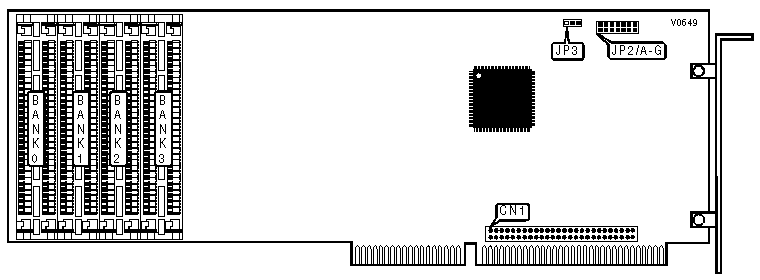

G-13 RAMPAGE PLUS 286 VER. II & III
|
Card Type |
Memory Expansion |
|
Chipset Controller |
Unidentified |
|
I/O Options |
Feature Connector |
|
Maximum Dram |
8MB |
|
CONNECTIONS | |
|
Purpose |
Location |
|
Feature Connector |
CN1 |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1024KB |
(2) 256K x 9 |
(2) 256K x 9 |
NONE |
NONE |
|
2048KB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 256K x 9 |
|
4096KB |
(2) 1M x 9 |
(2) 1M x 9 |
NONE |
NONE |
|
8192KB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
|
DEFAULT CONFIGURATION TOGGLE | |
|
Purpose |
JP3 |
|
Configuration default toggle first position |
Pins 2 & 3 closed |
|
Configuration default toggle second position |
Pins 1 & 2 closed |
|
Note:This toggle functions as a clearing of the firmware on the board. If the jumper is first on Pins 2 & 3 then changing this jumper to Pins 1 & 2 will cause the firmware to be erased and default values to be loaded. This will then stay until the jumper is moved again. | |
|
ADDRESS SELECT | ||||||||
|
Address |
JP2/A |
JP2/B |
JP2/C |
JP2/D |
JP2/E |
JP2/F |
JP2/G | |
| » |
0218h |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
0208h |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
0258h |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
0268h |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
02A8h |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
02B8h |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
02E8h |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
