UNIDENTIFIED
IDE INTERFACE ADAPTER
|
Card Type |
Hard drive controller card |
|
Processor |
None |
|
Maximum Onboard Memory |
Unidentified |
|
Hard Drives supported |
(2) IDE (AT/XT) |
|
Floppy drives supported |
None |
|
Data Bus |
8-bit ISA |
|
Card Size |
Half length, half height |
|

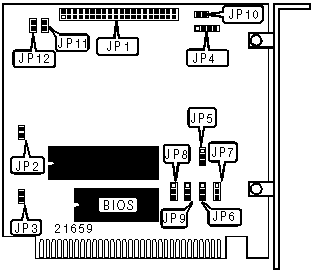

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
40-pin primary IDE(AT) connector |
JP1 |
4-pin connector - drive active LED |
JP4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
IDE(AT) interface enabled |
JP2 |
Open |
|
IDE (XT) interface enabled |
JP2 |
Closed | |
| » |
Adapter enabled |
JP3 |
Closed |
|
Adapter disabled |
JP3 |
Open | |
| » |
Pass diagnostics disabled |
JP10 |
Open |
|
Pass diagnostics enabled |
JP10 |
Closed | |
| » |
System signal ‘ALE’ disabled |
JP11 |
Open |
|
System signal ‘ALE’ enabled |
JP11 |
Closed | |
| » |
System signal ‘AEN’ disabled |
JP12 |
Open |
|
System signal ‘AEN’ enabled |
JP12 |
Closed | |
|
EPROM JUMPER CONFIGURATION | ||||
|
EPROM |
Bank Selection |
JP8 |
JP9 | |
|
2764 |
4000 |
Pins 2 & 3 closed |
Pins 1 & 2 closed | |
| » |
27256 |
0000 |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
2000 |
Pins 1 & 2 closed |
Pins 2 & 3 closed | ||
|
4000 |
Pins 2 & 3 closed |
Pins 1 & 2 closed | ||
|
6000 |
Pins 1 & 2 closed |
Pins 1 & 2 closed | ||
|
BIOS ADDRESS SELECTION | ||
|
Address |
JP6 |
JP7 |
|
C8000h |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
CA000h |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
CC000h |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
CE000h |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
