UNIDENTIFIED
IDEPLUS-V4L
|
| |
|
Data bus: |
16-bit, ISA |
|
Size: |
Half-length, half-height card |
|
Hard drive supported: |
Two IDE(AT) interface drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

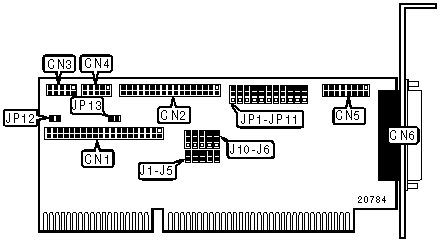

CONNECTIONS | |
|
Function |
Location |
|
40-pin IDE(AT) connector |
CN1 |
|
34-pin floppy drive connector |
CN2 |
|
10-pin serial port 1 - internal |
CN3 |
|
10-pin serial port 2 - internal |
CN4 |
|
16-pin game port |
CN5 |
|
25-pin parallel port - external |
CN6 |
|
2-pin connector - drive active LED |
JP12 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
IDE interface enabled |
JP1/pins 1 & 2 |
closed |
|
IDE interface disabled |
JP1/pins 2 & 3 |
closed | |
| » |
Floppy drive enabled |
JP2/pins 1 & 2 |
closed |
|
Floppy drive disabled |
JP2/pins 2 & 3 |
closed | |
| » |
Game port enabled |
JP3/pins 1 & 2 |
closed |
|
Game port disabled |
JP3/pins 2 & 3 |
open | |
| » |
IDE primary address is 1F0h |
JP4/pins 1 & 2 |
closed |
|
IDE secondary address is 170h |
JP4/pins 2 & 3 |
closed | |
| » |
Floppy drive primary address is 3F0h |
JP10/pins 1 & 2 |
closed |
|
Floppy drive secondary address is 370h |
JP10/pins 2 & 3 |
closed | |
| » |
IRQ14 enabled |
JP13 |
closed |
|
IRQ14 disabled |
JP13 |
open | |
|
SERIAL PORT 1 CONFIGURATION | |||
|
Address |
JP7 |
JP8 | |
| » |
3F8h (COM1) |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
3E8h (COM3) |
pins 2 & 3 closed |
pins 1 & 2 closed | |
|
Disabled |
N/A |
pins 2 & 3 closed | |
|
SERIAL PORT 2 CONFIGURATION | |||
|
Address |
JP5 |
JP6 | |
| » |
2F8h (COM2) |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
2E8h (COM4) |
pins 2 & 3 closed |
pins 1 & 2 closed | |
|
Disabled |
N/A |
pins 2 & 3 closed | |
|
PARALLEL PORT CONFIGURATION | |||
|
Address |
JP9 |
JP11 | |
| » |
378h (LPT1) |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
278h (LPT2) |
pins 2 & 3 closed |
pins 1 & 2 closed | |
|
Disabled |
N/A |
pins 2 & 3 closed | |
|
SERIAL PORT 1 INTERRUPT SELECTION | ||||||
|
IRQ |
J6 |
J7 |
J8 |
J9 |
J10 | |
| » |
4 |
open |
pins 2 & 3 |
open |
open |
open |
|
3 |
pins 2 & 3 |
open |
open |
open |
open | |
|
5 |
open |
open |
pins 2 & 3 |
open |
open | |
|
7 |
open |
open |
open |
pins 2 & 3 |
open | |
|
9 |
open |
open |
open |
open |
pins 2 & 3 | |
|
Note: Designated pins are in the closed position. | ||||||
|
SERIAL PORT 2 INTERRUPT SELECTION | ||||||
|
IRQ |
J6 |
J7 |
J8 |
J9 |
J10 | |
| » |
3 |
pins 1 & 2 |
open |
open |
open |
open |
|
4 |
open |
pins 1 & 2 |
open |
open |
open | |
|
5 |
open |
open |
pins 1 & 2 |
open |
open | |
|
7 |
open |
open |
open |
pins 1 & 2 |
open | |
|
9 |
open |
open |
open |
open |
pins 1 & 2 | |
|
Note: Designated pins are in the closed position. | ||||||
|
PARALLEL PORT INTERRUPT SELECTION | ||||||
|
IRQ |
J1 |
J2 |
J3 |
J4 |
J5 | |
| » |
7 |
open |
open |
open |
closed |
open |
|
3 |
closed |
open |
open |
open |
open | |
|
4 |
open |
closed |
open |
open |
open | |
|
5 |
open |
open |
closed |
open |
open | |
|
9 |
open |
open |
open |
open |
closed | |
