UNIDENTIFIED
SP-160
|
| |
|
Data bus: |
16-bit, ISA |
|
Size: |
Half-length, full-height card |
|
Hard drive supported: |
Two IDE (AT) Interface drives and up to seven SCSI devices |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

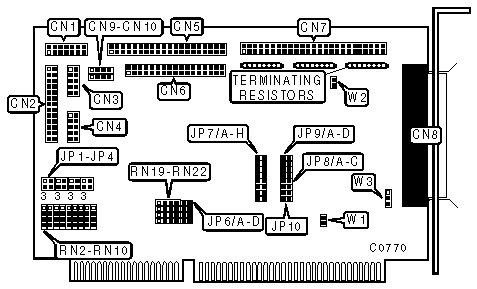

CONNECTIONS | |
|
Function |
Location |
|
Game port |
CN1 |
|
25-pin parallel port |
CN2 |
|
10-pin serial port 1 |
CN3 |
|
10-pin serial port 2 |
CN4 |
|
40-pin IDE (AT) interface connector |
CN5 |
|
34-pin control cable connector - floppy drive |
CN6 |
|
50-pin SCSI connector - internal |
CN7 |
|
50-pin SCSI connector - external |
CN8 |
|
4-pin connector - drive active LED (IDE) |
CN9 |
|
4-pin connector - drive active LED (SCSI) |
CN10 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Floppy drive enabled |
JP1 |
pins 1 & 2 closed |
|
Floppy drive disabled |
JP1 |
pins 3 & 4 closed | |
| » |
Factory configured - do not alter |
JP4 |
n/a |
| » |
AHA-1520 driver compatibility enabled |
JP7/jumper A |
open |
|
6360 compatibility enabled |
JP7/jumper A |
closed | |
| » |
Factory configured - do not alter |
JP7/jumper B |
n/a |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Disconnect/reselect enabled |
JP7/jumper C |
closed |
|
Disconnect/reselect disabled |
JP7/jumper C |
open | |
| » |
Synchronous negotiation enabled |
JP7/jumper D |
closed |
|
Synchronous negotiation disabled |
JP7/jumper D |
open | |
| » |
Boot-up with INT19 enabled |
JP7/jumper E |
closed |
|
Boot-up with INT19 disabled |
JP7/jumper E |
open | |
| » |
Factory configured - do not alter |
JP7/jumper F |
n/a |
| » |
Factory configured - do not alter |
JP7/jumper G |
n/a |
| » |
Factory configured - do not alter |
JP7/jumper H |
n/a |
| » |
SCSI parity enabled |
JP9/jumper D |
open |
|
SCSI parity disabled |
JP9/jumper D |
closed | |
| » |
SCSI address = 340h |
JP10 |
open |
|
SCSI address = 140h |
JP10 |
closed | |
| » |
Factory configured - do not alter |
W1 |
n/a |
| » |
Factory configured - do not alter |
W2 |
n/a |
| » |
Factory configured - do not alter |
W3 |
n/a |
|
IDE PORT CONFIGURATION | |||
|
Address |
JP2 |
JP3 | |
| » |
Primary |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
Secondary |
pins 1 & 2 closed |
pins 2 & 3 closed | |
|
Disabled |
pins 2 & 3 closed |
all pins open | |
|
SCSI INTERRUPT SELECT | |||||||||
|
IRQ |
JP6/A |
JP6/B |
JP6/C |
JP6/D |
RN19 |
RN20 |
RN21 |
RN22 | |
| » |
11 |
open |
open |
closed |
open |
not installed |
installed |
not installed |
not installed |
|
9 |
closed |
open |
open |
open |
not installed |
not installed |
not installed |
installed | |
|
10 |
open |
closed |
open |
open |
not installed |
not installed |
installed |
not installed | |
|
12 |
open |
open |
open |
closed |
installed |
not installed |
not installed |
not installed | |
|
Note:RN19-RN22 are four-pin resistors. | |||||||||
|
BIOS ADDRESS - JP8 | ||||
|
Address |
Jumper A |
Jumper B |
Jumper C | |
| » |
D8000h |
closed |
closed |
closed |
|
C8000h |
open |
closed |
closed | |
|
CC000h |
closed |
open |
open | |
|
D0000h |
closed |
open |
closed | |
|
D4000h |
closed |
closed |
open | |
|
Disabled |
open |
open |
closed | |
|
SCSI ID - JP9 | ||||
|
ID# |
Jumper A |
Jumper B |
Jumper C | |
| » |
ID7 |
closed |
closed |
closed |
|
ID0 |
open |
open |
open | |
|
ID1 |
closed |
open |
open | |
|
ID2 |
open |
closed |
open | |
|
ID3 |
closed |
closed |
open | |
|
ID4 |
open |
open |
closed | |
|
ID5 |
closed |
open |
closed | |
|
ID6 |
open |
closed |
closed | |
|
SCSI ID | |||||||||
|
IRQ |
JP6/A |
JP6/B |
JP6/C |
JP6/D |
RN19 |
RN20 |
RN21 |
RN22 | |
| » |
IRQ11 |
open |
open |
closed |
open |
not installed |
installed |
not installed |
not installed |
|
IRQ9 |
closed |
open |
open |
open |
not installed |
not installed |
not installed |
installed | |
|
IRQ10 |
open |
closed |
open |
open |
not installed |
not installed |
installed |
not installed | |
|
IRQ12 |
open |
open |
open |
closed |
installed |
not installed |
not installed |
not installed | |
|
PARALLEL PORT CONFIGURATION | ||||
|
LPT/Address |
RN2 |
RN3 |
RN4 | |
| » |
LPT2/378h |
installed |
not installed |
not installed |
|
LPT3/278h |
not installed |
installed |
not installed | |
|
Disabled |
not installed |
not installed |
installed | |
|
Note:RN2-RN4 are four-pin resistors. | ||||
|
SERIAL PORT 1 CONFIGURATION | ||||
|
COM/Address |
RN8 |
RN9 |
RN10 | |
| » |
COM1/3F8h |
installed |
not installed |
not installed |
|
COM3/3E8h |
not installed |
installed |
not installed | |
|
Disabled |
not installed |
not installed |
installed | |
|
Note:RN8-RN10 are four-pin resistors. | ||||
|
SERIAL PORT 2 CONFIGURATION | ||||
|
COM/Address |
RN5 |
RN6 |
RN7 | |
| » |
COM2/2F8h |
installed |
not installed |
not installed |
|
COM4/2E8h |
not installed |
installed |
not installed | |
|
Disabled |
not installed |
not installed |
installed | |
|
Note:RN5-RN7 are four-pin resistors. | ||||
