Data bus:	16-bit, ISA
Size:	Half-length, half-height card
Hard drive supported:	Two IDE (AT) Interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB

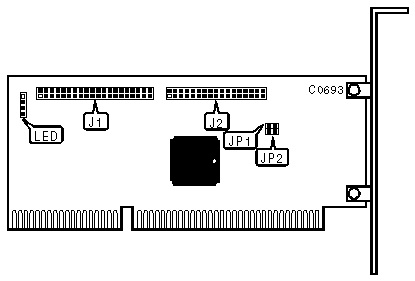

CONNECTIONS
Function	Location
40-pin IDE (AT) Interface connector	J1
34-pin control cable connector-floppy drive	J2
4-pin connector-drive active LED	LED

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Floppy drive interface - enabled	JP1	open
	Floppy drive interface - disabled	JP1	closed
»	Hard drive interface - enabled	JP2	open
	Hard drive interface - disabled	JP2	closed
