Data bus:	16-bit, ISA
Size:	Half-length, full-height card
Hard drive supported:	Two IDE(AT) Interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

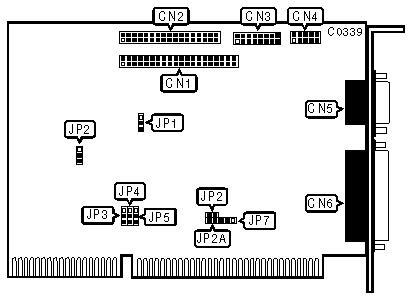

CONNECTIONS
Function	Location
40-pin IDE(AT) Interface connector	CN1
34-pin control cable connection - floppy drive	CN2
16-pin game port - internal	CN3
10-pin serial port 2 - internal	CN4
10-pin serial port 1 - external	CN5
25-pin parallel port (LPT1/2) - external	CN6

USER CONFIGURABLE SETTINGS
Function		Location	Setting
	Factory Configured - do not alter	JP1	-
»	IRQ14 without active control output	JP2	pins 2 & 3 closed
	IRQ14 with active control output	JP2	pins 1 & 2 closed
»	Parallel port set to LPT2	JP3	pins 2 & 3 closed
	Parallel port set to LPT3	JP3	pins 1 & 2 closed
»	Serial port 1 set to COM1, Serial port 2 set to COM2	JP4	pins 2 & 3 closed
	Serial port 1 set to COM3, Serial port 2 set to COM4	JP4	pins 1 & 2 closed
»	Hard drive enabled	JP5	pins 2 & 3 closed
	Hard drive disabled	JP5	pins 1 & 2 closed
»	Serial port 1 set to IRQ4	JP6	closed
»	Serial port 2 set to IRQ3	JP6A	closed
»	Parallel port interrupt is IRQ7	JP7	pins 2 & 3 closed
	Parallel port interrupt is IRQ5	JP7	pins 1 & 2 closed

MISCELLANEOUS TECHNICAL NOTES

The alternative Serial Port IRQ’s (JP6 and JP6A) are unknown
