UNIDENTIFIED
PM-510F
Data bus: 16-bit, ISA
Size: Half-length, half-height card
Hard drives supported: Two IDE (AT) Interface
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
|

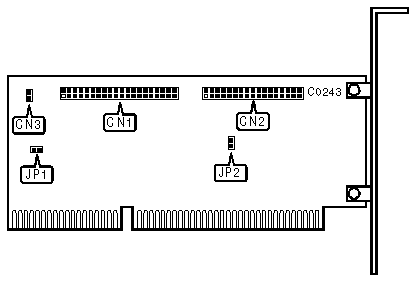

CONNECTIONS | |
|
Function |
Location |
|
40-pin IDE (AT) Interface control cable connector |
CN1 |
|
34-pin data cable connector-floppy drive |
CN2 |
|
2-pin connector-drive active LED |
CN3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Hard drive enabled |
JP1 |
closed |
|
Hard drive disabled |
JP1 |
open | |
| » |
Floppy drive enabled |
JP2 |
closed |
|
Floppy drive disabled |
JP2 |
open | |
