TANDY/RADIO SHACK
250-1095
|
Card type |
Hard drive controller |
|
Hard Drives supported |
Two IDE (AT) drives |
|
Floppy drives supported |
None |
|
Data Bus |
8-bit ISA |
|
Card Size |
Full-length, full-height card |
|

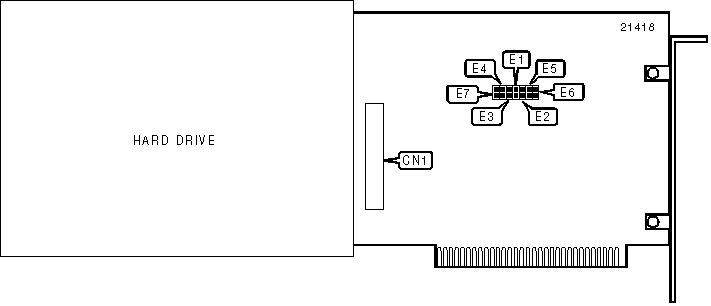

CONNECTIONS | |
|
Function |
Location |
|
40-pin primary IDE(AT) connector |
CN1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured - do not alter |
E3 |
Open |
| » |
Factory configured - do not alter |
E4 |
Open |
| » |
Factory configured - do not alter |
E5 |
Open |
| » |
Factory configured - do not alter |
E6 |
Open |
| » |
Factory configured - do not alter |
E7 |
Open |
|
BIOS ADDRESS SELECTION | |||
|
Address |
E1 |
E2 | |
| » |
C8000h |
Open |
Open |
|
CA000h |
Closed |
Open | |
|
CC000h |
Open |
Closed | |
|
CE000h |
Closed |
Closed | |
