TOOLMAKER, INC.
TIE-1200
|
| |
|
Data bus: |
16-bit, ISA |
|
Size: |
Full-length, full-height card |
|
Hard drive supported: |
Up to seven SCSI devices |
|
Floppy drives supported: |
None |
|

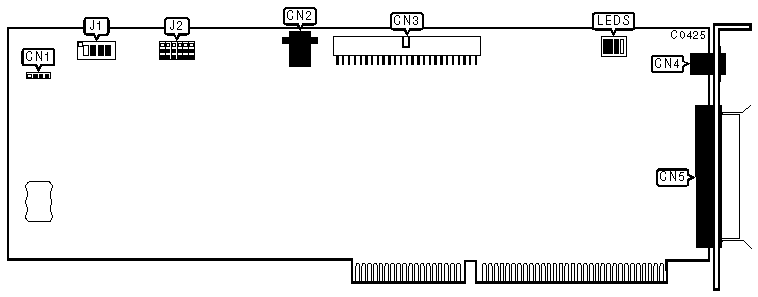

CONNECTIONS | |
|
Function |
Location |
|
4-pin connector - Drive active LED |
CN1 |
|
4-pin RJ11 Chipcard Reader connector - internal |
CN2 |
|
50-pin SCSI connector - internal |
CN3 |
|
4-pin RJ11 Chipcard Reader connector - external |
CN4 |
|
50-pin SCSI connector - external |
CN5 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
I/O port address is 310h |
J1/switch 1 |
on |
|
I/O port address is 350h |
J1/switch 1 |
off | |
| » |
TTL Chipcard Reader enabled |
J2/jumpers 1 - 6 |
pins 1 & 2 closed |
|
RS-232 Chipcard Reader enabled |
J2/jumpers 1 - 6 |
pins 2 & 3 closed | |
|
STATUS LEDS | ||||
|
Status |
LED 4 |
LED 3 |
LED 2 |
LED 1 |
|
Reset after power on |
on |
on |
on |
on |
|
RAM test |
on |
on |
on |
off |
|
DES chip test |
on |
on |
off |
on |
|
Internal software test |
on |
on |
off |
off |
|
TIE-1200 in download mode |
on |
off |
on |
on |
|
Download mode (service) |
on |
off |
on |
off |
|
Wrong transaction number |
on |
off |
off |
on |
|
Download post processing |
on |
off |
off |
off |
|
Internal program start |
off |
on |
on |
on |
|
Software loaded |
off |
on |
on |
off |
|
TIE diagnostic information |
off |
on |
off |
on |
|
TIE diagnostic information |
off |
on |
off |
off |
|
TIE diagnostic information |
off |
off |
on |
on |
|
TIE diagnostic information |
off |
off |
on |
off |
|
TIE-1200 installed (blinking LED) |
off |
off |
off |
on |
|
MISCELLANEOUS TECHNICAL NOTES |
|
J1/switches 2 - 4 are factory-configured to "on" position - do not alter. |
