Card Type	Multi-I/O card
Hard Drives supported	Two IDE (AT) drives
Floppy drives supported	Two 360KB, 720KB, 1.2MB, or 1.44MB drives
Data Bus	16-bit ISA
Card Size	Full-length, half-height card

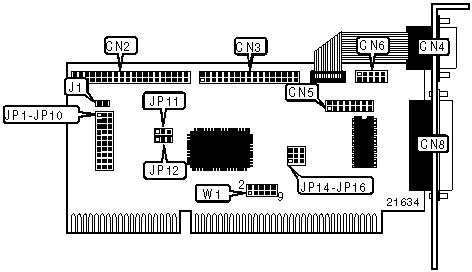

CONNECTIONS
Function	Location	Function	Location
2-pin connector - drive active LED	J1	16-pin game port	CN5
40-pin primary IDE(AT) connector	CN2	10-pin serial port 2 - internal	CN6
34-pin cable connector - floppy drive	CN3	25-pin parallel port - external	CN8
9-pin serial port 1 - external	CN4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Serial port 2 enabled	JP2	Pins 1 & 2 closed
	Serial port 2 disabled	JP2	Pins 2 & 3 closed
»	Game port enabled	JP3	Pins 1 & 2 closed
	Game port disabled	JP3	Pins 2 & 3 closed
»	Serial port 1 enabled	JP5	Pins 1 & 2 closed
	Serial port 1 disabled	JP5	Pins 2 & 3 closed
»	Floppy drive interface enabled	JP7	Pins 1 & 2 closed
	Floppy drive interface disabled	JP7	Pins 2 & 3 closed
»	IDE(AT) interface enabled	JP8	Pins 1 & 2 closed
	IDE(AT) interface disabled	JP8	Pins 2 & 3 closed
»	Factory configured - do not alter	JP9	Unidentified
»	Factory configured - do not alter	JP10	Unidentified
»	Factory configured - do not alter	JP11	Unidentified
»	Factory configured - do not alter	JP12	Unidentified
»	Factory configured - do not alter	JP14	Unidentified

DMA CHANNEL SELECTION
Channel	JP15	JP16
1	Pins 1 & 2 closed	Pins 1 & 2 closed
3	Pins 2 & 3 closed	Pins 2 & 3 closed

PARALLEL PORT ADDRESS SELECTION
Setting	Label	Position
LPT1 (378h)	JP6	Pins 1 & 2 closed
LPT2 (278h)	JP6	Pins 2 & 3 closed

SERIAL PORT 1 ADDRESS SELECTION
Setting		Label	Position
»	COM1 (3F8h)	JP4	Pins 1 & 2 closed
	COM3 (3E8h)	JP4	Pins 2 & 3 closed

SERIAL PORT 2 ADDRESS SELECTION
Setting		Label	Position
»	COM2 (2F8h)	JP1	Pins 1 & 2 closed
	COM4 (2E8h)	JP1	Pins 2 & 3 closed

SERIAL PORT 1 INTERRUPT SELECTION
IRQ		Label	Position
	IRQ2(9)	W1	Pins 4 & 6 closed
	IRQ3	W1	Pins 2 & 4 closed
»	IRQ4	W1	Pins 3 & 4 closed
	IRQ5	W1	Pins 7 & 9 closed
	IRQ7	W1	Pins 9 & 10 closed

SERIAL PORT 2 INTERRUPT SELECTION
IRQ		Label	Position
	IRQ2(9)	W1	Pins 5 & 6 closed
»	IRQ3	W1	Pins 1 & 2 closed
	IRQ4	W1	Pins 3 & 5 closed
	IRQ5	W1	Pins 5 & 7 closed

PARALLEL PORT INTERRUPT SELECTION
IRQ		Label	Position
	IRQ2(9)	W1	Pins 6 & 8 closed
	IRQ5	W1	Pins 7 & 8 closed
»	IRQ7	W1	Pins 8 & 10 closed

PARALLEL PORT MODE SELECTION
Setting		JP9	JP10
»	Standard	Pins 1 & 2 closed	Pins 2 & 3 closed
	EPP	Pins 2 & 3 closed	Pins 1 & 2 closed
	ECP	Pins 1 & 2 closed	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed	Pins 2 & 3 closed
