PROMISE TECHNOLOGY, INC.
DC200M
|
|
|
Data bus: |
16-bit, ISA |
|
Size: |
Half-length, full-height card |
|
Hard drive supported: |
Four IDE (AT) Interface drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB drives |
|

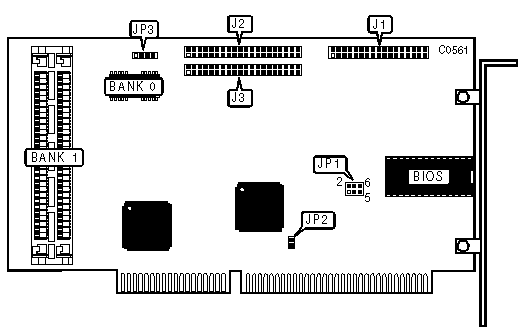

CONNECTIONS | |
|
Function |
Location |
|
34-pin data cable connector - floppy drive |
J1 |
|
40-pin control cable - IDE interface 1 |
J2 |
|
40-pin control cable - IDE interface 2 |
J3 |
|
4-pin connector - drive active LED |
JP3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
DC-200M is sole controller |
JP1 |
pins 3 & 4 closed |
|
DC-200M is secondary controller with interrupt IRQ12 |
JP1 |
pins 1 & 2 closed | |
|
DC-200M is secondary controller with interrupt IRQ15 |
JP1 |
pins 5 & 6 closed | |
| » |
Floppy drive interface enabled |
JP2 |
closed |
|
Floppy drive interface disabled |
JP2 |
open | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
512KB |
(1) 512K x 9 |
NONE |
|
1MB |
(1) 512K x 9 |
(2) 256K x 9 |
|
2.5MB |
(1) 512K x 9 |
(2) 1M x 9 |
|
8.5MB |
(1) 512K x 9 |
(2) 4M x 9 |
|
MISCELLANEOUS TECHNICAL NOTE |
|
Note: Cache mode must disabled while installing operating systems other than DOS. |
