PLUS DEVELOPMENT CORPORATION
HARDCARD II XL
|
|
Data bus: 16-bit, ISA
Size: Full-length, full-height card
Hard drives supported: One AT Interface (IDE) drives
Floppy drives supported: None
|

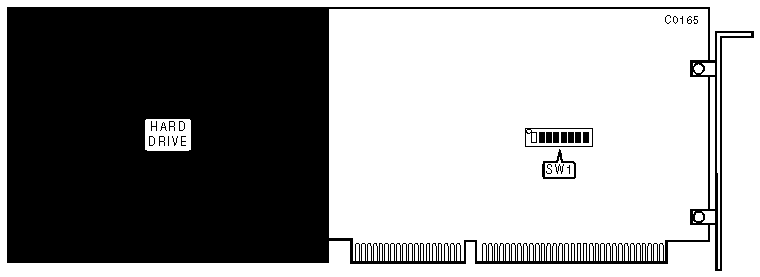

BIOS AND I/O PORT ADDRESS - SW1 | |||||
|
BIOS |
I/O PORT |
switch 1 |
switch 2 |
switch 3 |
switch 4 |
|
C8000h |
170-177h, 376-377h |
on |
on |
on |
on |
|
CA000h |
320-327h, 32E-32Fh |
on |
on |
on |
off |
|
CC000h |
170-177h, 376-377h |
on |
on |
off |
on |
|
CE000h |
320-327h, 32E-32Fh |
on |
on |
off |
off |
|
D0000h |
170-177h, 376-377h |
on |
off |
on |
on |
|
D2000h |
320-327h, 32E-32Fh |
on |
off |
on |
off |
|
D4000h |
170-177h, 376-377h |
on |
off |
off |
on |
|
D6000h |
320-327h, 32E-32Fh |
on |
off |
off |
off |
|
Disabled |
1F0-1F7h, 3F6-3F7h |
off |
off |
on |
off |
|
Disabled |
1F0-1F7h, 3F6-3F7h |
off |
off |
off |
off |
|
INTERRUPT REQUEST | ||||
|
IRQ |
SW1/switch 5 |
SW1/switch 6 |
SW1/switch 7 | |
| » |
IRQ11 |
on |
off |
off |
|
IRQ12 |
off |
on |
off | |
|
IRQ14 |
off |
off |
on | |
|
MISCELLANEOUS TECHNICAL NOTES |
|
SW1/switch 8 is not used and must be left "off." |
