FUTURE DOMAIN CORPORATION
TMC-860M, TMC-885M
|
| |
|
Data bus: |
8-bit, ISA |
|
Size: |
Three/quarter-length, full-height card |
|
Hard drive supported: |
Up to seven SCSI devices |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives (TMC-885M only) |
|

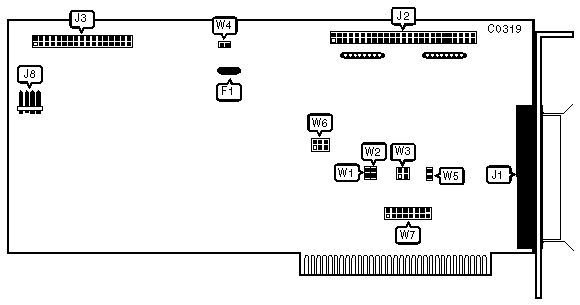

CONNECTIONS | |
|
Function |
Location |
|
Poly Switch Thermal Fuse |
F1 |
|
DB2 SCSI cable connector - external |
J1 |
|
50-pin SCSI cable connector - internal |
J2 |
|
34-pin control cable connector - floppy drive (TMC-885M only) |
J3 |
|
4-pin connector - Drive active LED |
J8 |
|
BIOS ADDRESS | ||||
|
Address |
Jumper W1 |
Jumper W2 |
Jumper W3 | |
| » |
CA00h |
open |
open |
closed vertically |
|
C800h |
open |
closed |
closed vertically | |
|
CE00h |
closed |
open |
closed vertically | |
|
DE00h |
closed |
closed |
closed vertically | |
|
E800h |
open |
open |
closed horizontally | |
|
EC00h |
closed |
open |
closed horizontally | |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Termination Power enabled |
W4 |
closed |
|
Termination Power disabled |
W4 |
open | |
| » |
Zero Wait State disabled |
W5 |
open |
|
Zero Wait State enabled |
W5 |
closed | |
| » |
Floppy drive enabled |
W6/jumpers 1-3 |
closed |
|
Floppy drive disabled |
W6/jumpers 1-3 |
open | |
|
INTERRUPT REQUEST | |||||||||
|
IRQ |
W7/1 |
W7/2 |
W7/3 |
W7/4 |
W7/5 |
W7/6 |
W7/7 |
W7/8 | |
| » |
Disabled |
open |
open |
open |
open |
open |
open |
open |
open |
|
IRQ3 |
closed |
open |
open |
open |
open |
open |
open |
open | |
|
IRQ4 |
open |
closed |
open |
open |
open |
open |
open |
open | |
|
IRQ5 |
open |
open |
closed |
open |
open |
open |
open |
open | |
|
IRQ10 |
open |
open |
open |
closed |
open |
open |
open |
open | |
|
IRQ11 |
open |
open |
open |
open |
closed |
open |
open |
open | |
|
IRQ12 |
open |
open |
open |
open |
open |
closed |
open |
open | |
|
IRQ14 |
open |
open |
open |
open |
open |
open |
closed |
open | |
|
IRQ15 |
open |
open |
open |
open |
open |
open |
open |
closed | |
