Maximum Onboard Memory	Unidentified
Data Bus	EISA
Card Size	Full height, three-quarters length
Hard Drives Supported	Up to 7 SCSI-2 devices
Floppy Drives Supported	Unidentified

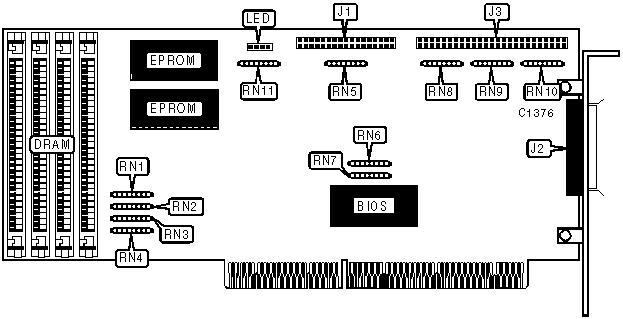

CONNECTIONS
Function	Label	Function	Label
34-pin cable connector - floppy drive	J1	50-pin SCSI connector - internal	J3
50-pin SCSI connector - external	J2	4-pin drive active LED	LED

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	RP1	Unidentified
»	Factory configured - do not alter	RP2	Unidentified
»	Factory configured - do not alter	RP3	Unidentified
»	Factory configured - do not alter	RP4	Unidentified
»	Factory configured - do not alter	RP5	Unidentified
»	Factory configured - do not alter	RP6	Unidentified
»	Factory configured - do not alter	RP7	Unidentified
»	Factory configured - do not alter	RP8	Unidentified
»	Factory configured - do not alter	RP9	Unidentified
»	Factory configured - do not alter	RP10	Unidentified
»	Factory configured - do not alter	RP11	Unidentified

DRAM CONFIGURATION

The configuration of the DRAM on this board is unidentified.

SCSI TERMINATION

The method for selecting SCSI termination is unidentified.
