DATA TECHNOLOGY CORPORATION
DTC2277 (ATRONICS VER.)
|
Chipset |
Atronics ATI-2020 |
|
Maximum Onboard Memory |
Unidentified |
|
Data Bus |
32-bit VESA local bus |
|
Card Size |
Full height, full length |
|
Hard Drives Supported |
Four IDE-AT devices |
|
Floppy Drives Supported |
Unidentified |
|

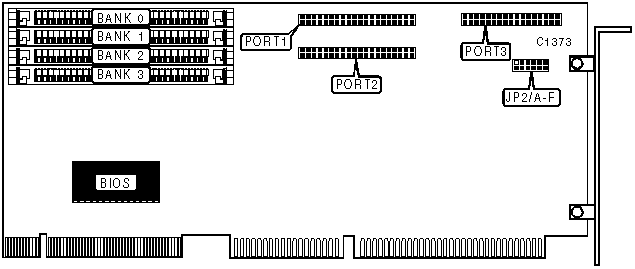

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
40-pin primary IDE(AT) connector |
PORT1 |
34-pin cable connector - floppy drive |
PORT3 |
|
40-pin secondary IDE(AT) connector |
PORT2 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
JP2/D |
Open |
| » |
Factory configured - do not alter |
JP2/E |
Closed |
| » |
Factory configured - do not alter |
JP2/F |
Closed |
|
BIOS ADDRESS SELECTION | ||||
|
Setting |
JP2/A |
JP2/B |
JP2/C | |
|
C8000h |
On |
Off |
Off | |
|
CC000h |
Off |
On |
Off | |
|
D0000h |
On |
On |
Off | |
|
D4000h |
Off |
Off |
On | |
|
D8000h |
On |
Off |
On | |
| » |
DC000h |
On |
On |
On |
|
Disabled |
Off |
Off |
Off | |
|
DRAM CONFIGURATION |
|
The configuration of the memory is unidentified. |
