CMS ENHANCEMENTS, INC.
HCWD3VSR2/HCWD6VSR2
|
| |
|
Data bus: |
16-bit ISA |
|
Size: |
Three-quarter length, full-height card |
|
Hard drive supported: |
Two RLL ST412 drives |
|
Floppy drives supported: |
320KB, 360KB, 720KB, 1.2MB, 1.44MB |
|

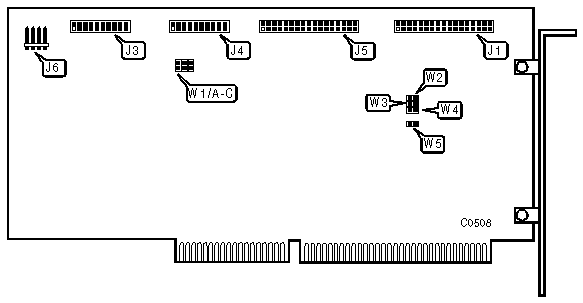

CONNECTIONS | |
|
Function |
Location |
|
34-pin control cable connector - floppy drive |
J1 |
|
20-pin data cable connector - drive 1 |
J3 |
|
20-pin data cable connector - drive 0 |
J4 |
|
34-pin control cable connector - hard drive |
J5 |
|
External LED connector |
J6 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Latched hard disk mode enabled |
W1/A |
open |
|
Non-latched hard disk mode enabled |
W1/A |
closed | |
| » |
Four byte ECC enabled |
W1/B |
open |
|
Seven byte ECC enabled |
W1/B |
closed | |
| » |
Caching enabled |
W1/C |
open |
|
Caching disabled |
W1/C |
closed | |
| » |
BIOS enabled |
W2 |
open |
|
BIOS disabled |
W2 |
closed | |
|
USER CONFIGURABLE SETTINGS(CONTINUED) | |||
|
Function |
Location |
Setting | |
| » |
Primary hard disk I/O address select |
W3 |
open |
|
Alternate hard disk I/O address select |
W3 |
closed | |
| » |
Primary floppy drive I/O address select |
W4 |
open |
|
Alternate floppy drive I/O address select |
W4 |
closed | |
| » |
Single speed floppy drive mode enabled |
W5 |
open |
|
Dual speed floppy drive mode enabled |
W5 |
closed | |
