CMS ENHANCEMENTS, INC.
ST412 CONTROLLER CARD (MFM)
|
| |
|
Data bus: |
16-bit ISA |
|
Size: |
Three quarter-length, full-height card |
|
Hard drive supported: |
Two ST506/412 MFM drives |
|
Floppy drives supported: |
None |
|

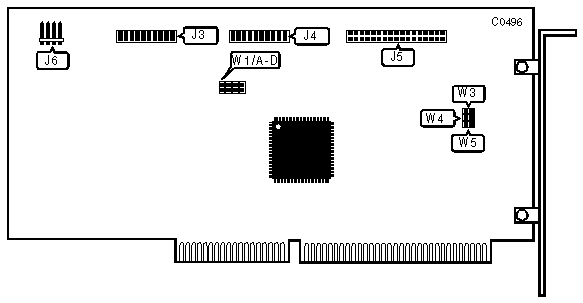

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
20-pin data cable connector - drive 1 |
J3 |
34-pin control cable connector |
J5 |
|
20-pin data cable connector - drive 0 |
J4 |
External LED connector |
J6 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Drive in latched mode |
W1/A |
open |
|
Drive in non-latched mode |
W1/A |
closed | |
| » |
Factory configured - do not alter |
W1/B |
open |
| » |
Caching enabled |
W1/C |
open |
|
Caching disabled |
W1/C |
closed | |
| » |
Factory configured - do not alter |
W1/D |
open |
| » |
Primary port I/O address select C800h, D000h, or D800h |
W3 |
open |
|
Alternate port I/O address select CC00h, D400h |
W3 |
closed | |
| » |
Factory configured - do not alter |
W4 |
N/A |
| » |
Factory configured - do not alter |
W5 |
N/A |
