COMPUTER ELEKTRONIK INFOSYS/TOOMAKER, INC.
C5610
|
|
Data bus: 16-bit, ISA
Size: Half-length, full-height card
Hard drives supported: UP to seven SCSI devices
Floppy drives supported: None
|

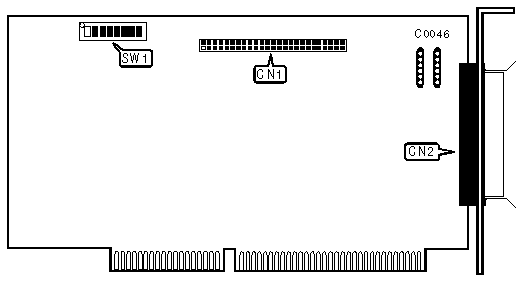

CONNECTIONS | |
|
Function |
Location |
|
50-pin SCSI connector-internal |
CN1 |
|
50-pin SCSI connector-external |
CN2 |
|
I/O PORT ADDRESS | |||
|
Address |
SW1/switch 1 |
SW1/switch 2 | |
| » |
330h |
on |
on |
|
340h |
off |
on | |
|
370h |
on |
off | |
|
3E0h |
off |
off | |
|
INTERRUPT REQUEST | |||
|
IRQ |
SW1/switch 3 |
SW1/switch 4 | |
| » |
IRQ5 |
on |
on |
|
IRQ10 |
off |
on | |
|
IRQ11 |
on |
off | |
|
IRQ15 |
off |
off | |
|
BIOS ADDRESS | |||||
|
Address |
SW1/switch 5 |
SW1/switch 6 |
SW1/switch 7 |
SW1/switch 8 | |
| » |
Disabled |
on |
on |
on |
on |
|
C000h |
on |
on |
on |
off | |
|
C400h |
on |
on |
off |
off | |
|
C800h |
on |
off |
on |
off | |
|
CC00h |
on |
off |
off |
off | |
|
D000h |
off |
on |
on |
off | |
|
D400h |
off |
on |
off |
off | |
|
D800h |
off |
off |
on |
off | |
|
DC00h |
off |
off |
off |
off | |
