CIPRICO, INC.
RIMFIRE 5500
|
|
Data bus: 16-bit, ISA
Size: Full-length, full-height card
Hard drives supported: Up to seven SCSI devices.
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
|

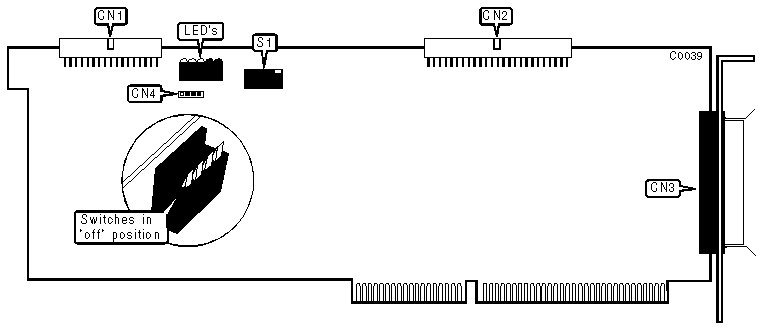

CONNECTIONS | |
|
Function |
Location |
|
34-pin data cable connector-floppy drive |
CN1 |
|
50-pin SCSI connector-internal |
CN2 |
|
50-pin SCSI connector-external |
CN3 |
|
4-pin connector-drive active LED |
CN4 |
|
FLOPPY CONFIGURATION | |||
|
Function |
Location |
Setting | |
| » |
Floppy port set to ISA standard values |
S1/switch 1 |
off |
|
Floppy port operates from EEPROM values |
S1/switch 1 |
on | |
|
BIOS AND DUAL PORT MEMORY ADDRESS | ||||
|
Address |
S1/switch 2 |
S1/switch 3 |
S1/switch 4 | |
| » |
C8000-CBFFFh |
off |
on |
on |
|
CA000-CBFFFh / BIOS disabled |
on |
on |
on | |
|
CC000-CFFFFh |
off |
off |
on | |
|
CE000-CFFFFh / BIOS disabled |
on |
off |
on | |
|
D8000-DBFFFh |
off |
on |
off | |
|
DA000-DBFFFh / BIOS disabled |
on |
on |
off | |
|
DC000-DFFFFh |
off |
off |
off | |
|
DE000-DFFFFh / BIOS disabled |
on |
off |
off | |
|
STATUS LEDS | |
|
LED |
Definition |
|
LED 1-Yellow |
DMA transfer in progress |
|
LED 2-Yellow |
Adapter has queued commands |
|
LED 3-Yellow |
Adapter is idle and waiting on host |
|
LED 4-Red |
Self-Test. Fails if flashing continues or stays on for extended period. |
|
LED 5-Green |
Adapter is processing command |
