Data bus:

32-bit EISA

Size:

Three-quarter length, full-height card

Hard drive supported:

Up to seven SCSI-2 or Fast SCSI-2 devices

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB drives

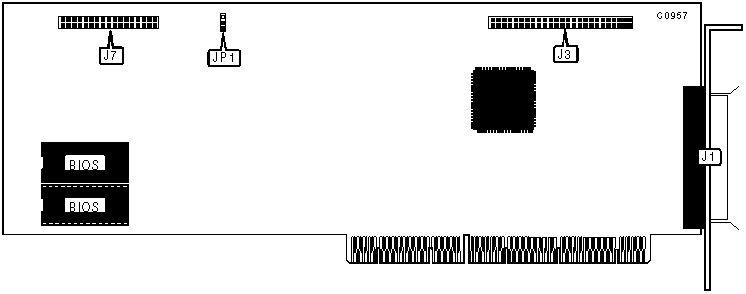

CONNECTIONS

Function

Location

50-pin SCSI connector - external

J1

50-pin SCSI connector - internal

J3

34-pin cable connector - floppy drive

J7

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

Floppy drive interface enabled as primary

JP1

Pins 2 & 3 closed

Floppy drive interface disabled

JP1

Pins 1 & 2 closed
