ADVANCED LOGIC RESEARCH, INC.
R66
|
| |
|
Data bus: |
16-bit ISA |
|
Size: |
Three-quarter length, full-height card |
|
Hard drive supported: |
Two RLL ST412/506 drives |
|
Floppy drives supported: |
None |
|

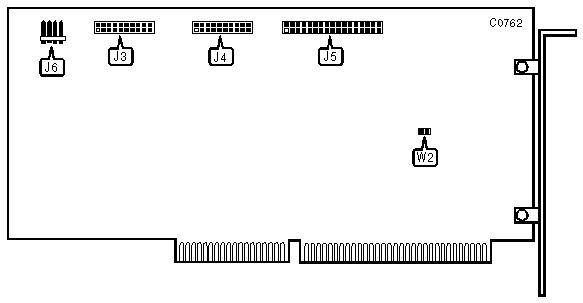

CONNECTIONS | |
|
Function |
Location |
|
20-pin data cable connector - drive 1 |
J3 |
|
20-pin data cable connector - drive 0 |
J4 |
|
34-pin control cable connector - hard drive |
J5 |
|
4-pin connector - drive active LED |
J6 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
BIOS enabled |
W2 |
open |
|
BIOS disabled |
W2 |
closed | |
