ALPHA DESIGN
WINCHESTER/FLOPPY DISK CONTROLLER
|
| |
|
Data bus: |
16-bit ISA |
|
Size: |
Three-quarter length, Full-height card |
|
Hard drive supported: |
Two ST506/412 drives |
|
Floppy drives supported: |
360KB, 720KB, 1.2MB, 1.44MB |
|

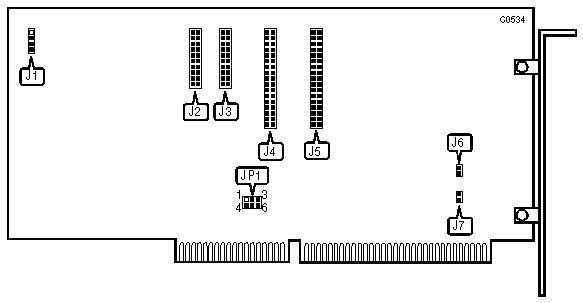

CONNECTIONS | |
|
Function |
Location |
|
4-pin connector - drive active LED |
J1 |
|
20-pin data cable connector - drive 1 |
J2 |
|
20-pin data cable connector - drive 0 |
J3 |
|
34-pin control cable connector - hard drive |
J4 |
|
34-pin control cable connector - floppy drive |
J5 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Primary address select |
JP1 |
pins 2 & 3, 5 & 6 closed |
|
Alternate address select |
JP1 |
pins 1 & 2, 4 & 5 closed | |
| » |
Precompensation is 125ns |
J6 |
open |
|
Precompensation is 187ns |
J6 |
closed | |
| » |
Single speed floppy drive select |
J7 |
open |
|
Dual speed floppy drive select |
J7 |
closed | |
