ACCULOGIC, INC.
SIDE-3
|
| |
|
Data bus: |
16-bit, ISA |
|
Size: |
Half-length, half-height card |
|
Hard drives supported: |
Two IDE(AT) drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB |
|

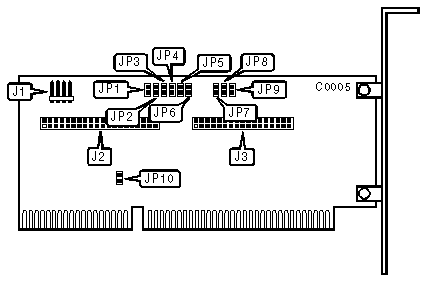

CONNECTIONS | |
|
Function |
Location |
|
4-pin connector-Drive Active LED |
J1 |
|
40-pin AT Interface (IDE) connector |
J2 |
|
34-pin control cable connector-floppy drive |
J3 |
ACCULOGIC, INC.
SIDE-3
. . .continued from previous page
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Location |
Setting |
|
Floppy drive port address is 3F0-3F7h |
JP6 |
open |
|
Floppy drive port address is 370-377h |
JP6 |
closed |
|
Hard drive port address is 1F0-1F7h |
JP7 |
open |
|
Hard drive port address is 170-177h |
JP7 |
closed |
|
Single speed floppy drives supported |
JP8 |
open |
|
Dual speed floppy drives supported |
JP8 |
closed |
|
Floppy drive precompensation is 125ns |
JP9 |
open |
|
Floppy drive precompensation is 187ns |
JP9 |
closed |
|
I/O Channel Ready signal disabled |
JP10 |
open |
|
I/O Channel Ready signal enabled |
JP10 |
closed |
|
IRQ14 STATUS | ||
|
Function |
Jumper JP1 |
Jumper JP2 |
|
IRQ14 normal |
closed |
open |
|
IRQ14 delayed until ACTIVE- signal is removed |
open |
closed |
|
MISCELLANEOUS TECHNICAL NOTES |
|
JP3, JP4, and JP5 are Not used. This controller has no on-board software. |
